Brand Name : YUEXIN
Place of Origin : Guangdong, China
MOQ : 1
Type : Testing Machine
Accuracy : mm
Power : 2500W
Protection Class : IP66
Voltage : 380V
Model : YX-IPX56BD-500L
Weight : 500kg

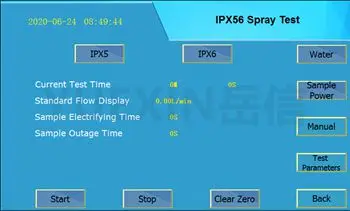

Control : 7 Inch Touch Screen
Inner Size : L800*D800*H800mm
External dimensions : L1540*D920*H3720mm
Turntable diameter : 600mm

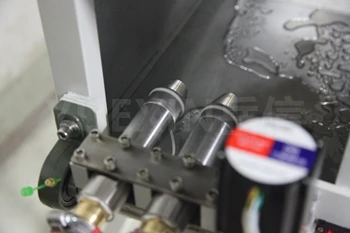

Nozzle diameter : 6.3mm(IPX5);12.5mm(IPX6)
Water Flow : 12.5±0.625L/min(IPX5);100.0±12.5L/min(IPX6)
Turn table load : 50KG
Test time : 0-999min
Model | YX-IPX56BD-500L |
Inner Size | L800*D800*H800mm |
External dimensions | L1540*D920*H3720mm |
Turntable diameter | 600mm |
Nozzle diameter | 6.3mm(IPX5);12.5mm(IPX6) |
Water Flow | 12.5±0.625L/min(IPX5);100.0±12.5L/min(IPX6) |
Flow control method | Manual adjustment (rotameter) |
Water spraying distance | Approximately 2.7 meters (distance from nozzle to center of turntable) |
Fixing method of spray gun | Mechanical fixation (program setting, adjusting spray gun angle) |
Turn table load bearing | 50KG |
Turn table lifting height | Non lifting (fixed) |
Test time | 0-999min |
Protection device | Leakage, water shortage, short circuit |
Voltage(V) | 380V |
Power(KW) | 2.0KW |
Standard | IEC60529:1989+A1:2013,ISO20653,IEC60598,DIN40050 |
![]() |

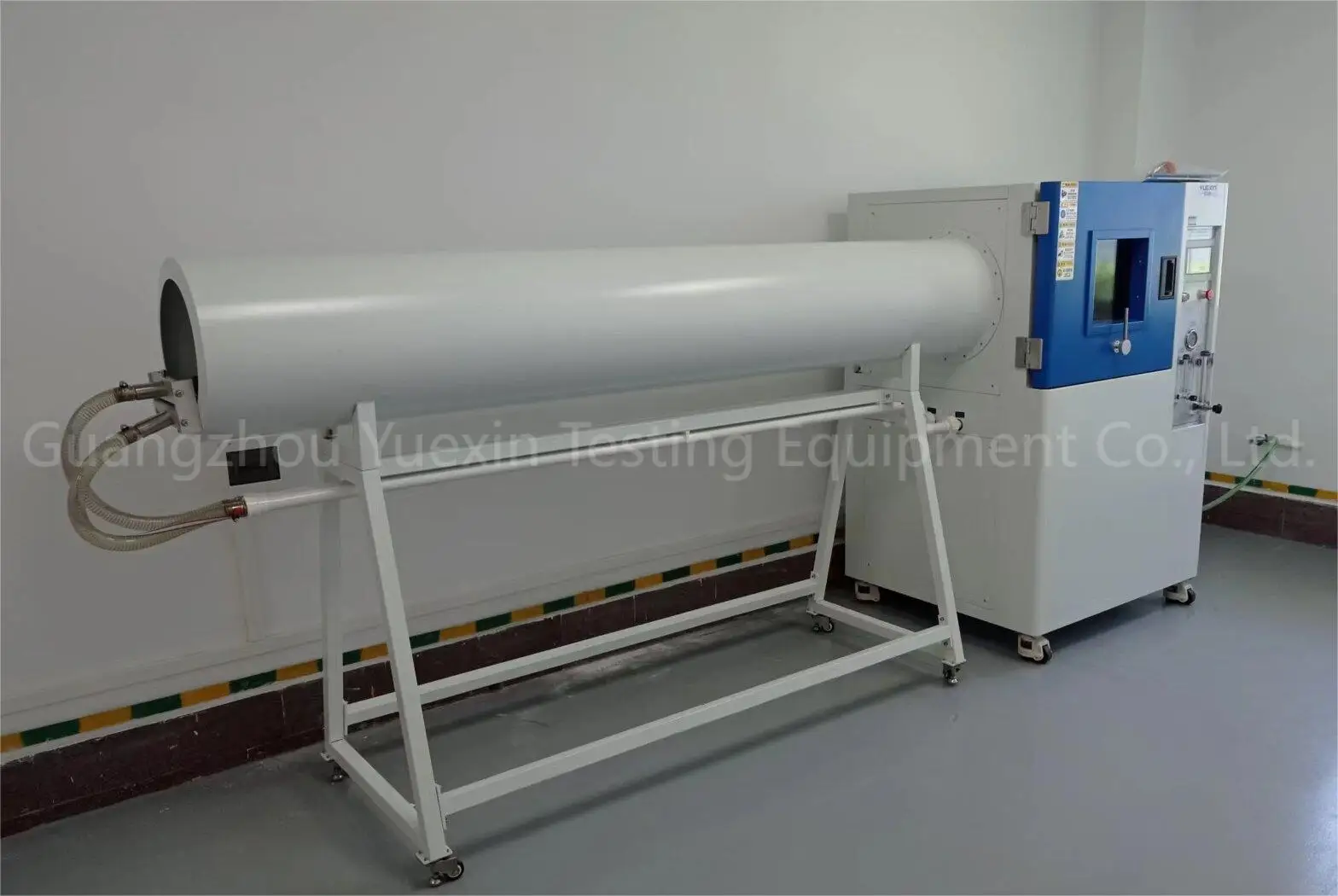

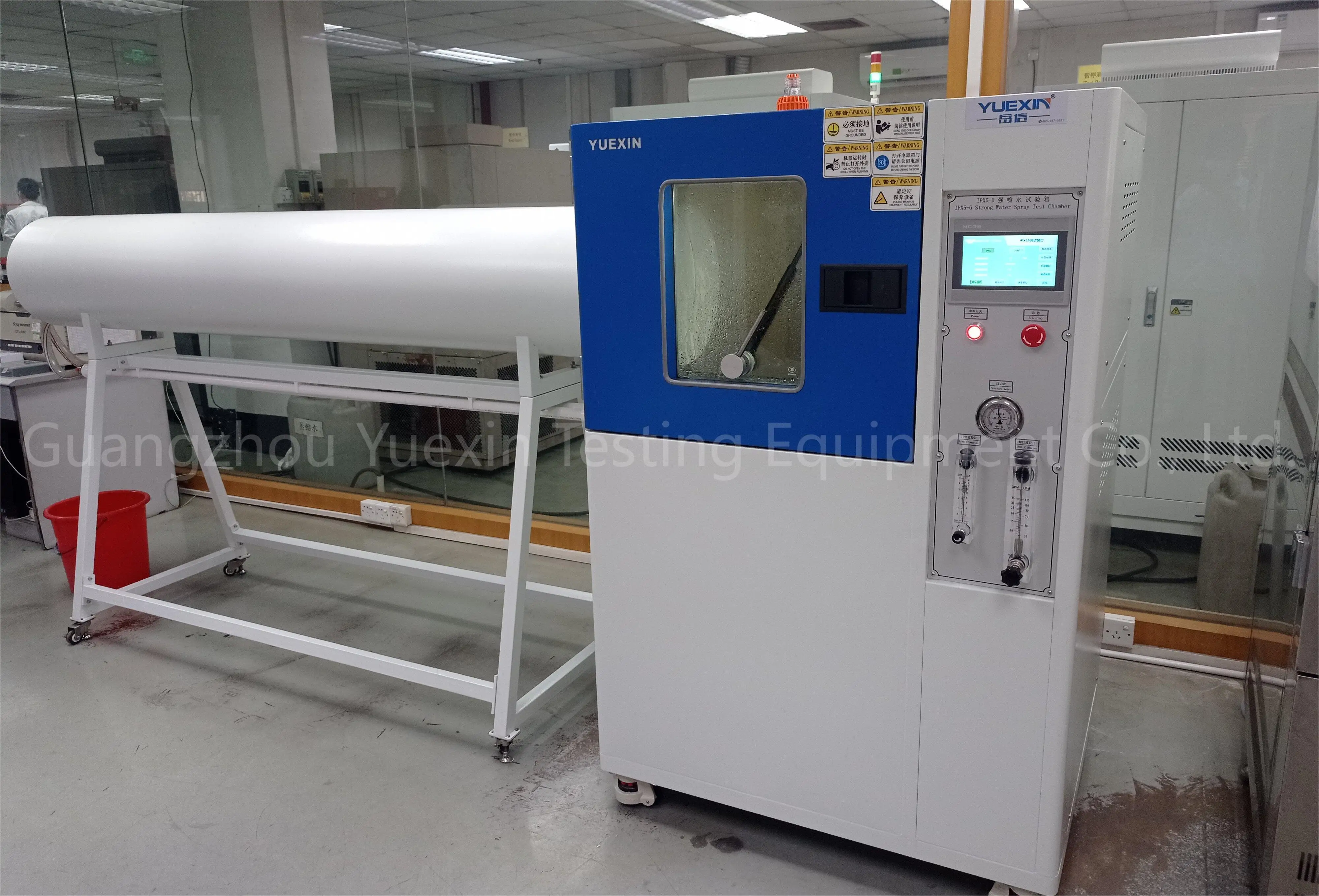

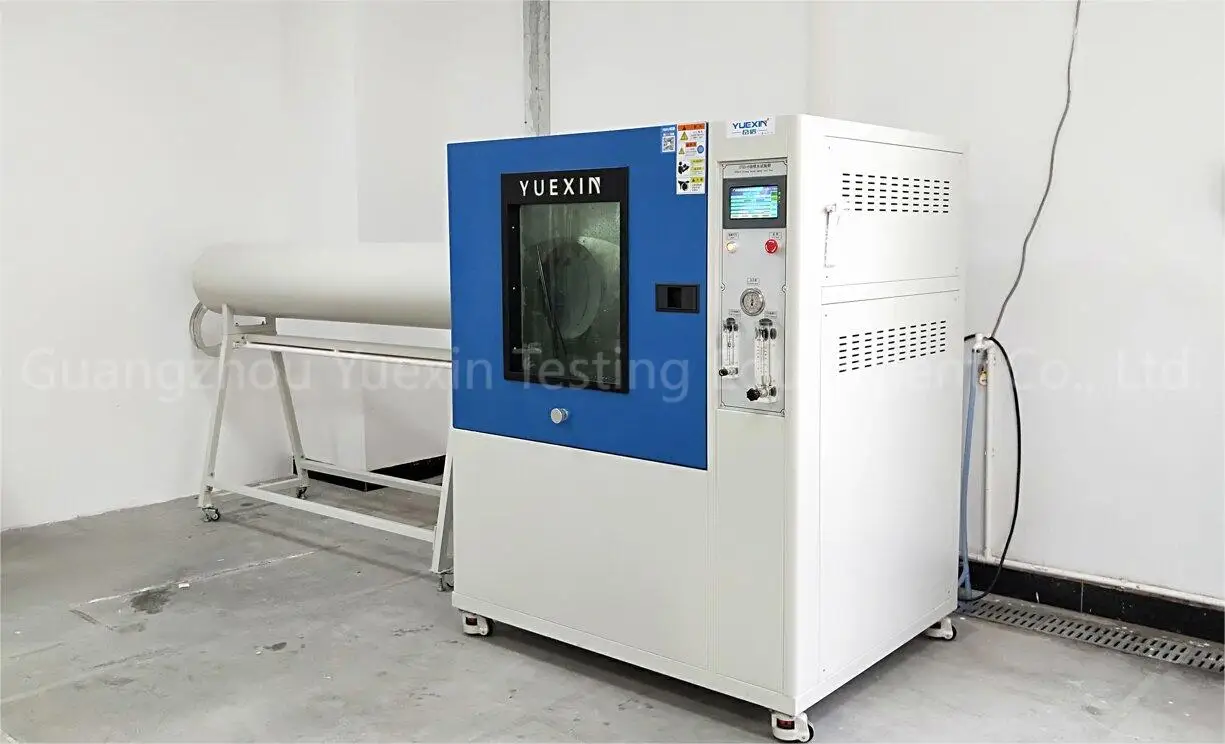

Durable IP65 and IP66 Rain Test Chamber Water Resistance Test Instrument with 380V Power Supply Images |
