IPX8 Waterproof Testing Equipment with 0-50m Water Depth and 220V Power for Diving Test Applications

Guangzhou Yuexin Test Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

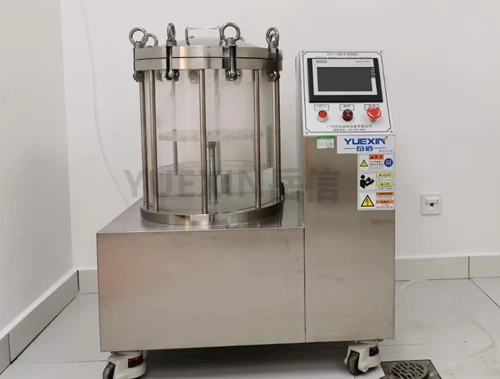

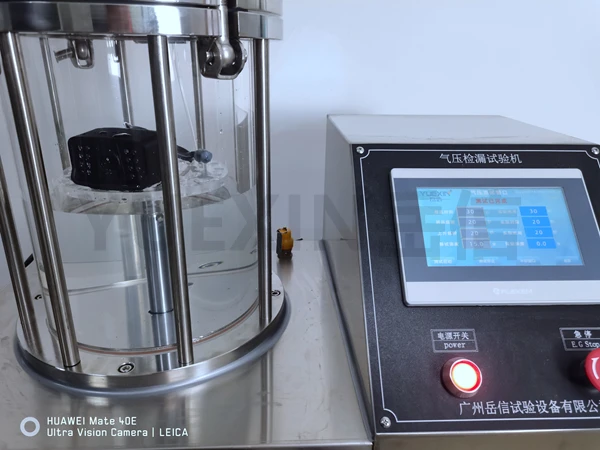

IPX8 Waterproof Testing Equipment with 0-50m Water Depth and 220V Power for Diving Test Applications

Brand Name : YUEXIN

Place of Origin : Guangdong, China

Model Number : YX-JL-QF50-10L

MOQ : 1

Price : $4,655.07-5,289.85

IP code : IPX8

Weight : 80kg

Inner size : Diameter 200 × Hight 300mm

External size : 550×450×600mm

Tank thickness : 20mm

Tank material : Polymethyl methacrylate (PMMA)

Flange thickness : 25mm

Flange material : Steel stainless

Sample pallet size : Diameter 180mm

Distance to bottom : 145mm

Pressure error : ±0.002Mpa

Sensor accuracy : 0.001Mpa

Pressure range : 0-0.5Mpa

Max limit pressure : 0.6Mpa

Voltage : 220V

Power : 100w

Contact Now

Product Description

IPX8 Waterproof Testing Equipment with 0-50m Water Depth and 220V Power for Diving Test Applications

IPX8 Waterproof Testing Equipment with 0-50m Water Depth and 220V Power for Diving Test Applications

Product Paramenters

Model

YX-Jl-Q50-10L

Inner size

Diameter 200 × Hight 300mm

External size

550×450×600mm

Tank thickness

20mm

Tank material

Polymethyl methacrylate (PMMA)

Flange thickness

25mm

Flange material

Steel stainless

Sample pallet size

Diameter 180mm

Distance from pallet to bottom

145mm

Equipment weight

100kg

Pressure control

Auto control

Pressure error

±0.002Mpa

Sensor display accuracy

0.001Mpa

Test water depth range

0-50m
Pressure range 0-0.5Mpa
Relief valve exhaust pressure

0.55Mpa

Max. Limit Pressure 0.6Mpa
Sample tray lifting speed Non-adjustable (pre-factory setting)
Dwell time 0-9999s
Automatic pressurereduction delay 0-9999s(manual adjust)
Test delay timeprotective device 0~9999s
Air intake adiustment mode Manually adiust the pressure requlating valve
Voltage 220V
Power 100w
Company Information

Guangzhou Yuexin Test Equipment Co., LTD., established in 2013, covers an area of 2350 square meters and employs approximately 50 people.
We have rich experience in the test equipment industry. In the last decade, we are delicated to provide IP waterproof testing, IP dustproof testing and other environmental testing equipments.
We are a manufactuer with a professional R&D team,which enables us to customize the product as per requirements.
We have a excellent after-sales service team that can respond and provide solutions quickly.
We are the nominated supplier of BYD, DJI, CATL and other companies, and our products are sold worldwide.
We have been granted 25 patents and passed the Quality management system:ISO9001.
We enjoy a reliable reputation among customers with professional service, quality products and competitive prices.
The main products are IPX1/2 dripping test chamber, IPX3/4 rain test chamber, IPX5/6 water spray test chamber, IPX7/8 immersion testing machine, IPX9K high pressure spray test chamber and IP5/6X dustproof test chamber, etc.Warmly welcome you to visit our factory!

IPX8 Waterproof Testing Equipment with 0-50m Water Depth and 220V Power for Diving Test ApplicationsIPX8 Waterproof Testing Equipment with 0-50m Water Depth and 220V Power for Diving Test ApplicationsIPX8 Waterproof Testing Equipment with 0-50m Water Depth and 220V Power for Diving Test ApplicationsIPX8 Waterproof Testing Equipment with 0-50m Water Depth and 220V Power for Diving Test ApplicationsIPX8 Waterproof Testing Equipment with 0-50m Water Depth and 220V Power for Diving Test ApplicationsIPX8 Waterproof Testing Equipment with 0-50m Water Depth and 220V Power for Diving Test ApplicationsIPX8 Waterproof Testing Equipment with 0-50m Water Depth and 220V Power for Diving Test ApplicationsIPX8 Waterproof Testing Equipment with 0-50m Water Depth and 220V Power for Diving Test ApplicationsIPX8 Waterproof Testing Equipment with 0-50m Water Depth and 220V Power for Diving Test Applications

Our Services

IPX8 Waterproof Testing Equipment with 0-50m Water Depth and 220V Power for Diving Test Applications

Packaging & Shipping

IPX8 Waterproof Testing Equipment with 0-50m Water Depth and 220V Power for Diving Test Applications

Details :Strong standard wood case for IEC 60529 IPX9 Water Testing Machine Rain Spray Test Chamber
Port : Guangzhou
FAQ

1. Are you Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, We are one of the professional manufacturers of waterproof and dustproof test equipment in China. Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.In the period of warranty,we may offering the parts replacements,repairing and technique support,necessaryly,our engineer may go to the local country to service.

If your machine doesnt work, you can send us an E-mail or call us we will try our best to find the problem through our conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. Whats the delivery term?

For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation video in English version through Email.

Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.
